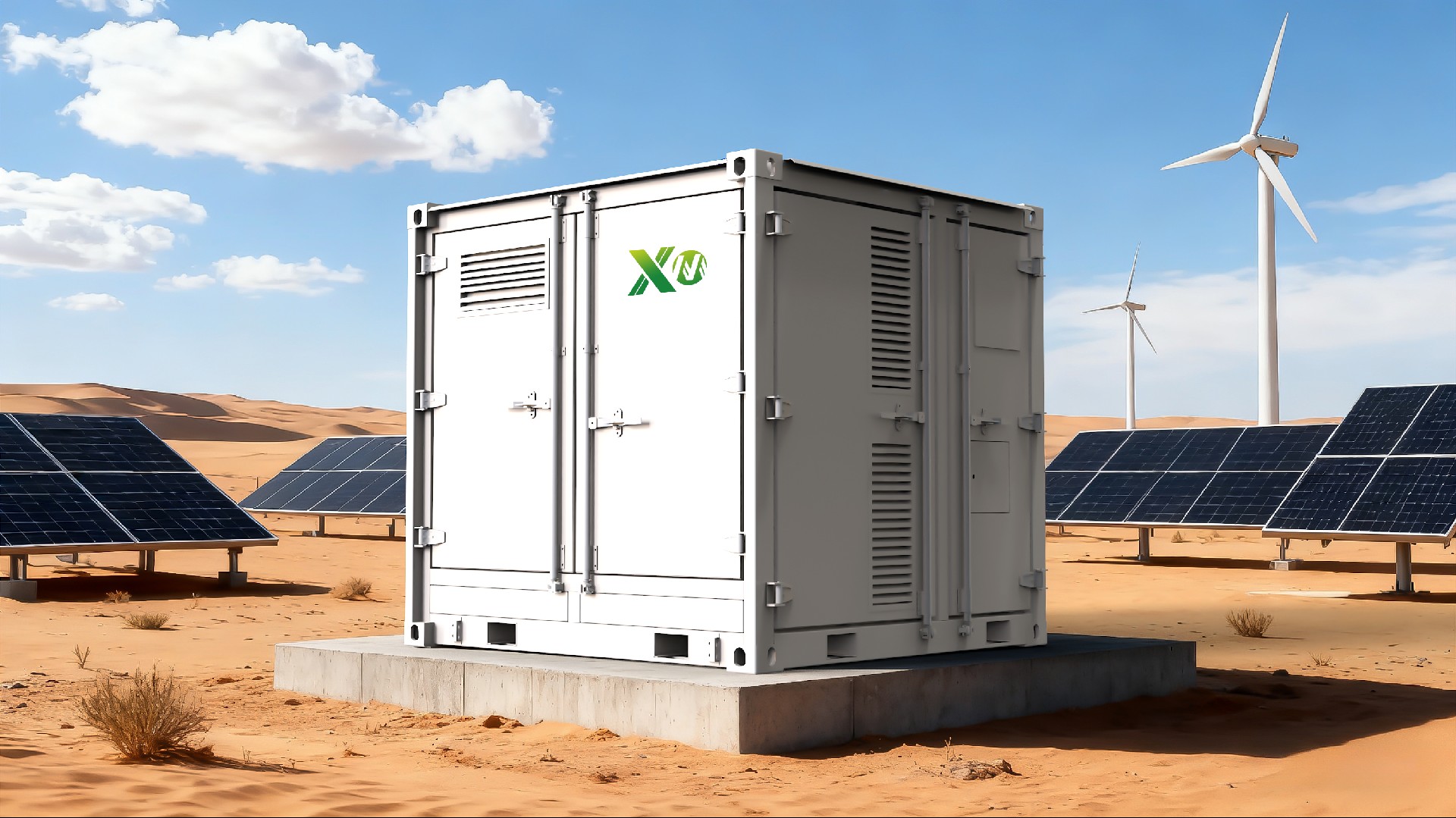

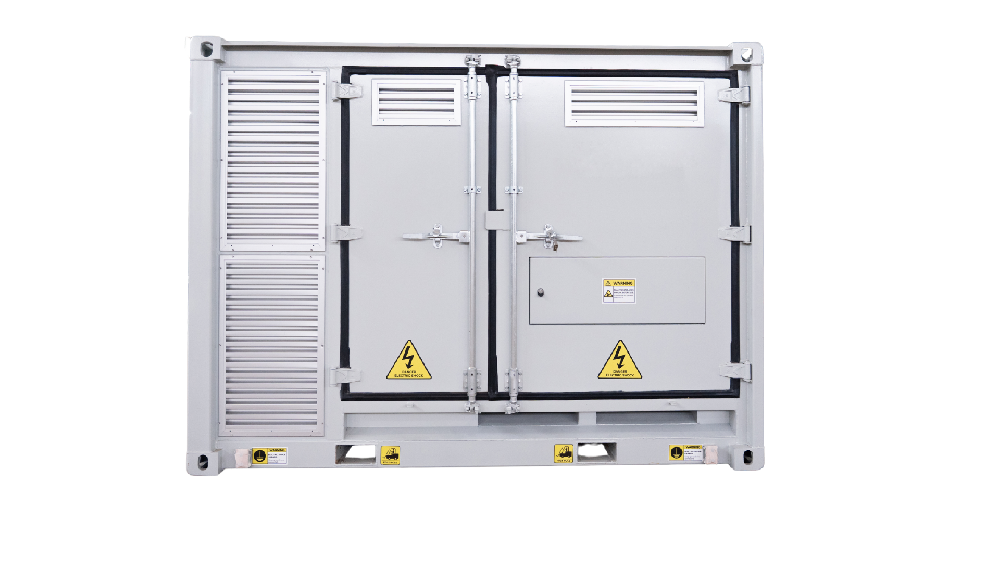

简述：多功能高密度储能平台，具有多场景适应性、企业级电池安全性，可扩展部署，满足住宅、商业和工业用电需求。
额定功率： 125 kVA – 500 kVA
(Overload Power 187.5kVA – 750kVA @ 5s)
系统容量： 230 kWh / 460 kWh
电池成分： LiFePO4 (Grade A)
并 网： On-Grid / Off-Grid Supported
循环寿命： 8000 Cycles
通信控制： 4G / Wi-Fi, Remote Start Generator
防护等级： IP54, C5 Corrosion Protection
设计年限： 10 Years
提供高达750kVA的峰值功率，持续5秒，轻松应对重型电机启动和工业浪涌负载。
经过认证的C5防腐和IP54户外等级，可在采矿和沿海环境中长期耐用。
支持自动远程发电机触发，以实现不间断的离网微电网运行。

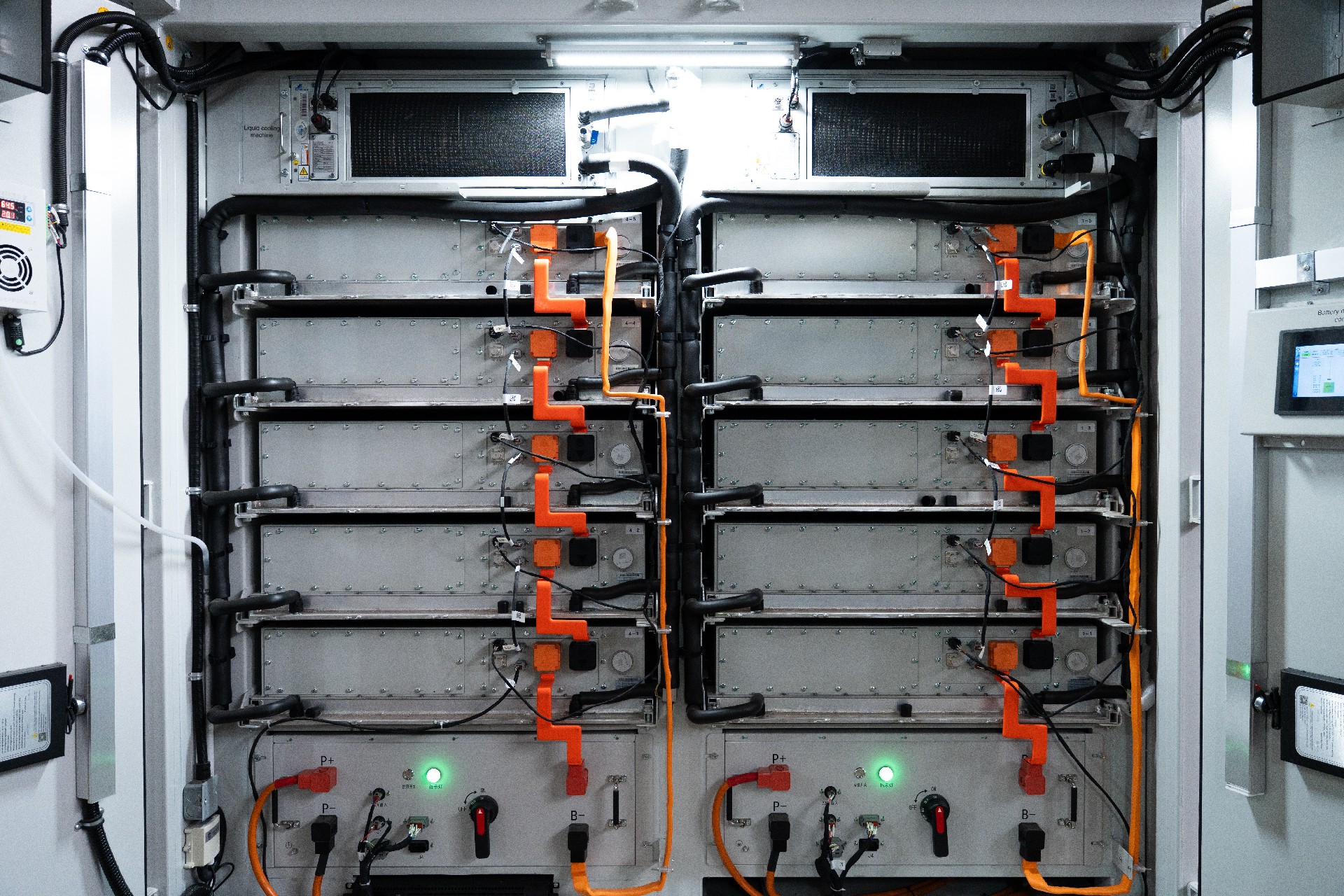

集成4G/WiFi连接，8000多个循环A级LFP电池模块，用于智能远程云管理。

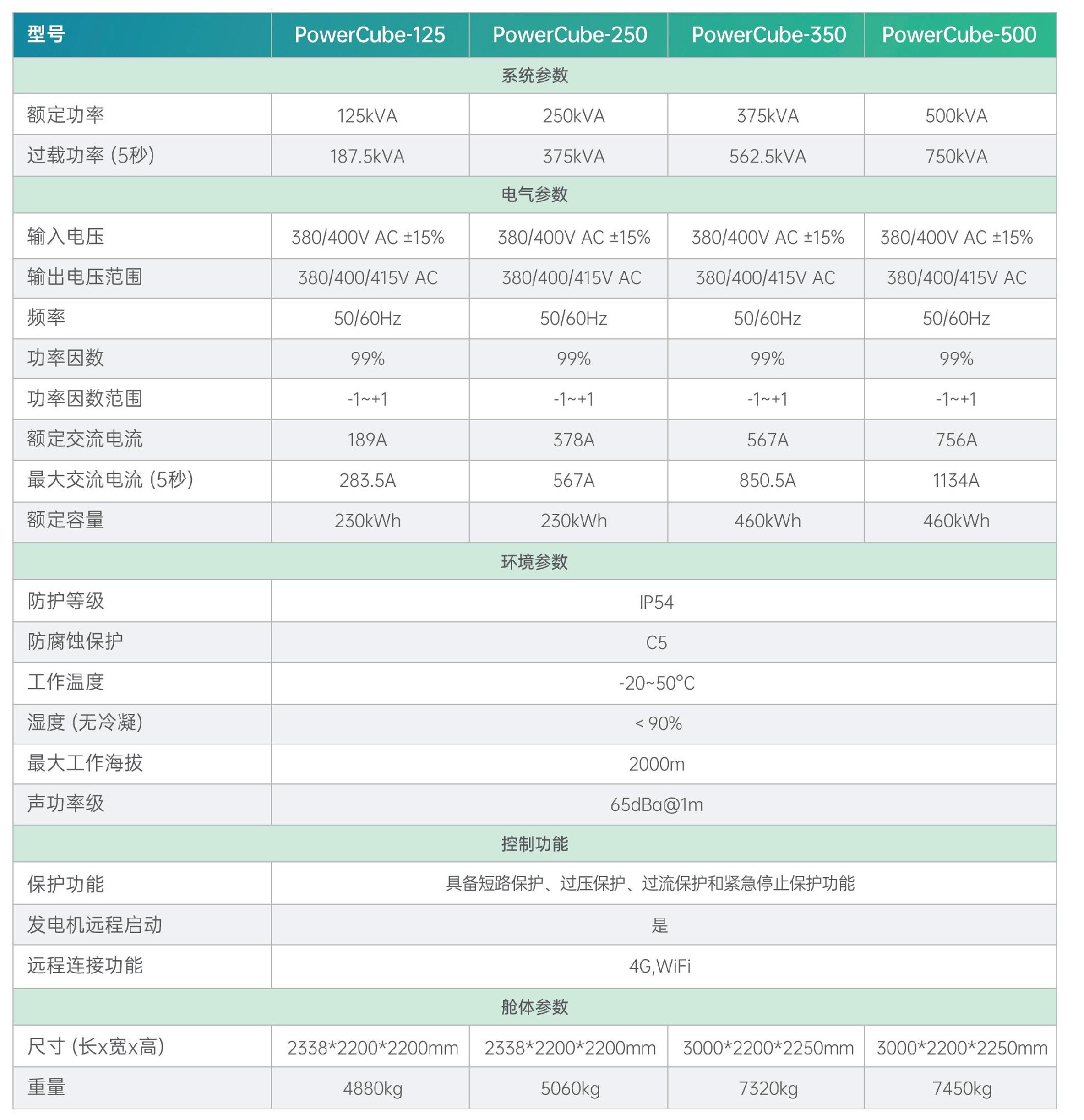

| Performance & Electrical | |
|---|---|
| Nominal Rated Power | 125kVA |
| Overload Power (5S) | 187.5kVA |
| Input Voltage | 380/400V AC ±15% |
| Output Voltage Range | 380/400/415V AC |
| Frequency | 50 / 60Hz |
| Power Factor / Range | 99% / -1 ~ +1 |
| Nominal AC Current | 189A |
| Max AC Current (5S) | 283.5A |
| Nominal Capacity | 230kWh |
| Size & Physical | |
| Dimensions (L x W x H) | 2338 * 2200 * 2200 mm |
| Weight | 4880kg |
| Performance & Electrical | |
|---|---|
| Nominal Rated Power | 250kVA |
| Overload Power (5S) | 375kVA |
| Input Voltage | 380/400V AC ±15% |
| Output Voltage Range | 380/400/415V AC |
| Frequency | 50 / 60Hz |
| Power Factor / Range | 99% / -1 ~ +1 |
| Nominal AC Current | 378A |
| Max AC Current (5S) | 567A |
| Nominal Capacity | 230kWh |
| Size & Physical | |
| Dimensions (L x W x H) | 2338 * 2200 * 2200 mm |
| Weight | 5060kg |
| Performance & Electrical | |
|---|---|
| Nominal Rated Power | 375kVA |
| Overload Power (5S) | 562.5kVA |
| Input Voltage | 380/400V AC ±15% |
| Output Voltage Range | 380/400/415V AC |
| Frequency | 50 / 60Hz |
| Power Factor / Range | 99% / -1 ~ +1 |
| Nominal AC Current | 567A |
| Max AC Current (5S) | 850.5A |
| Nominal Capacity | 460kWh |
| Size & Physical | |
| Dimensions (L x W x H) | 3000 * 2200 * 2250 mm |
| Weight | 7320kg |
| Performance & Electrical | |
|---|---|
| Nominal Rated Power | 500kVA |
| Overload Power (5S) | 750kVA |
| Input Voltage | 380/400V AC ±15% |
| Output Voltage Range | 380/400/415V AC |
| Frequency | 50 / 60Hz |
| Power Factor / Range | 99% / -1 ~ +1 |
| Nominal AC Current | 756A |
| Max AC Current (5S) | 1134A |
| Nominal Capacity | 460kWh |
| Size & Physical | |
| Dimensions (L x W x H) | 3000 * 2200 * 2250 mm |
| Weight | 7450kg |
| Environmental & Controls | |
|---|---|
| IP Rating | IP54 |
| Corrosion Protection | C5 |
| Operating Temperature | -20 ~ 50°C |
| Humidity (No condensation) | < 90% |
| Maximum Operating Altitude | 2000m |
| Sound Power Level | 65dBA @ 1m |
| Protection | Short circuit protection, overvoltage protection, overcurrent protection, emergency stop protection |
| Remote Start Generator | YES |
| Remote Connectivity | 4G, WiFi |
